Description

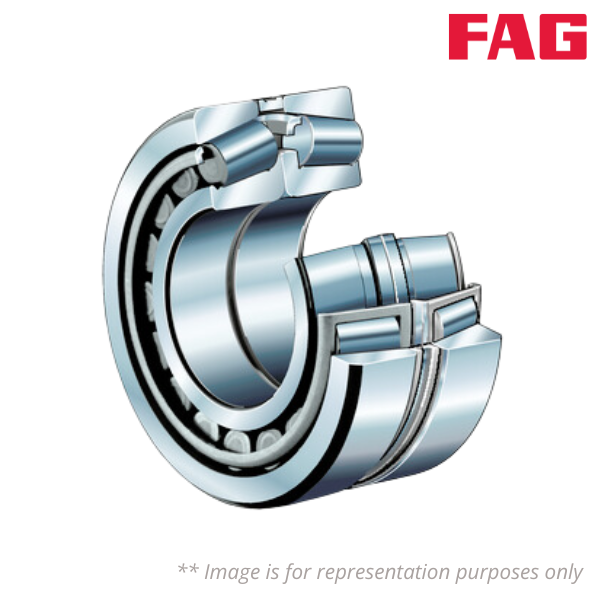

Brand - FAG
Item Number - 32240-XL-DF-A500-550 FAG
Category - Tapered Roller Bearing Single Row (paired metric)
Also known as - 0860241594082 32240-DF-A500-550
EAN - 4054369228045
Inner (d) MM - 200
Outer (D) MM - 360
Width (B) MM - 208
Weight (kg) - 88.2
Tapered Roller Pair Internal Play - 500-550µm
Radial Static Load Rating C0r (N) - 4150000
Radial Dynamic Load Rating Cr (N) - 2700000
