Description

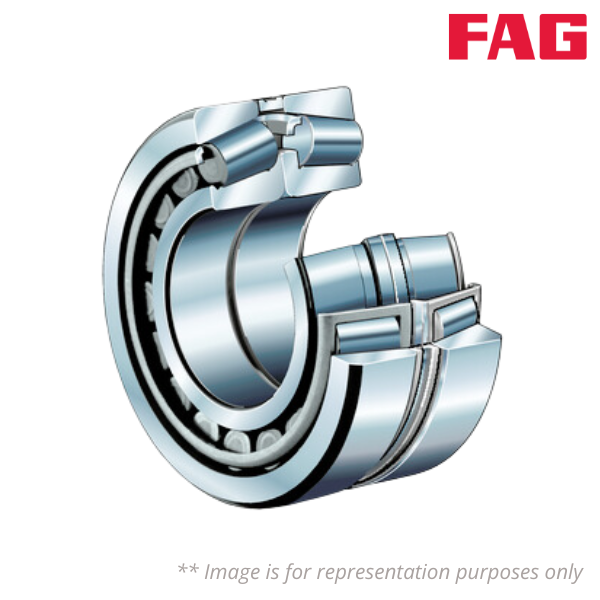

Brand - FAG
Item Number - 32236-XL-DF-A430-480 FAG
Category - Tapered Roller Bearing Single Row (paired metric)
Also known as - 0865194094081 32236-DF-A430-480
EAN - 4054369333152
Inner (d) MM - 180
Outer (D) MM - 320
Width (B) MM - 182
Weight (kg) - 62.3
Tapered Roller Pair Internal Play - 430-480µm
Radial Static Load Rating C0r (N) - 3300000
Radial Dynamic Load Rating Cr (N) - 2040000
