Description
Brand - ZEN
Item Number - 32224 ZEN
Category - Tapered Roller Bearings
Inner Roller Bearing (d) mm - 120
Outer Diameter (D) mm - 215
T (mm) - 61.5
Width (B) mm - 58
C (mm) - 50
d1 (mm) - 164.3
r1 (mm) - 3
r2 (mm) - 3
r3 (mm) - 2.5
r4 (mm) - 2.5
Weight (kg) - 9.31
Dynamic Laod Rating (N) - 541500
Static Load Rating (N) - 693500
Limiting Speed - 3277.5
Outer Ring Material - AISI52100
Inner Ring Material - AISI52101
Rollers Material - AISI52102
Cage Material - #10 / 08F

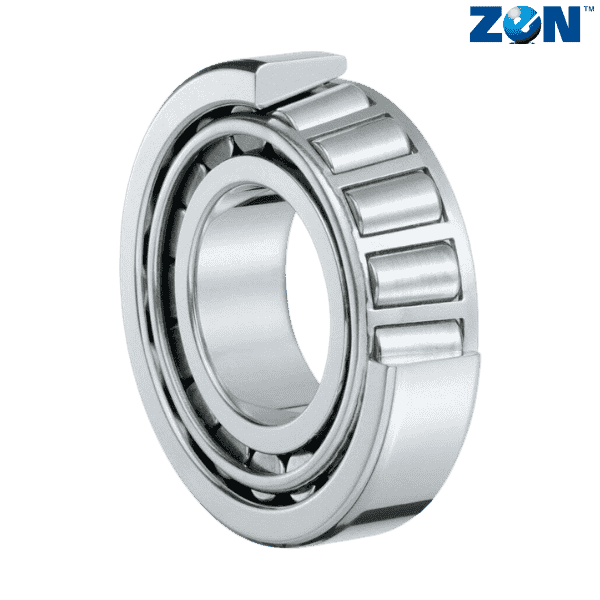

** Images are for representation purposes only
