3222-M FAG

Brand - FAG
Item Number - 3222-M FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 110
Outside Diameter (D) mm - 200
Width (B) mm - 69.8
Basic Dynamic Load Rating, Radial (Cr) N - 236000
Basic Static Load Rating, Radial (C0r) N - 290000
Fatigue Load Limit, Radial (Cur) N - 12200
Limiting Speed (nG) min–1 - 4400
Reference Speed (nϑr) min–1 - 3750
Weight (m) kg - 9.03
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 180.1
Shoulder Diameter Inner Ring (d1) mm - 143.3
Distance Between the Apexes of the Pressure Cones (a) mm - 143.5
Nominal Contact Angle (α)° - 35

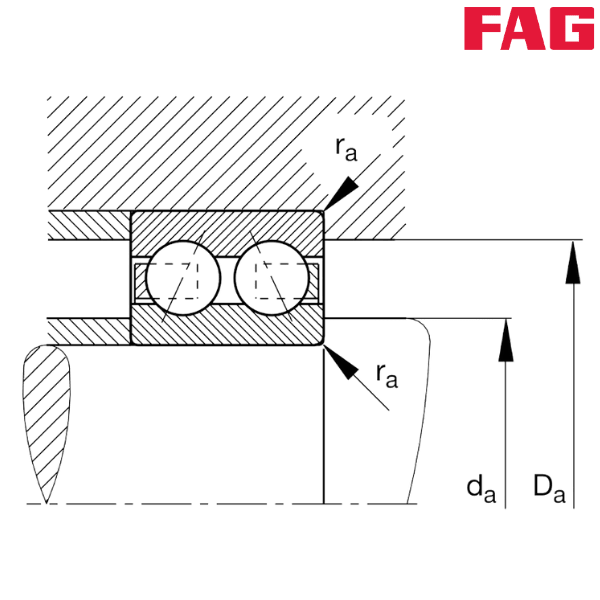

Minimum Diameter Shaft Shoulder (da) mm - 122
Maximum Diameter of Housing Shoulder (Da) mm - 188
Maximum Fillet Radius (ra) mm - 2.1

Descriptions of Suffixes :
--------------------------------------------------------------------------
M - Brass Cage

** Images are for representation purposes only
