Description
Brand - NILOS
Item Number - 3222 AV NILOS
Category - NILOS-RING for Double Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 110 mm
Outer Diameter (a) - 192 mm
Dimension (C) - 155 mm
Widtth (h) - 4 mm
Material Thickness (s) - 0.5 mm

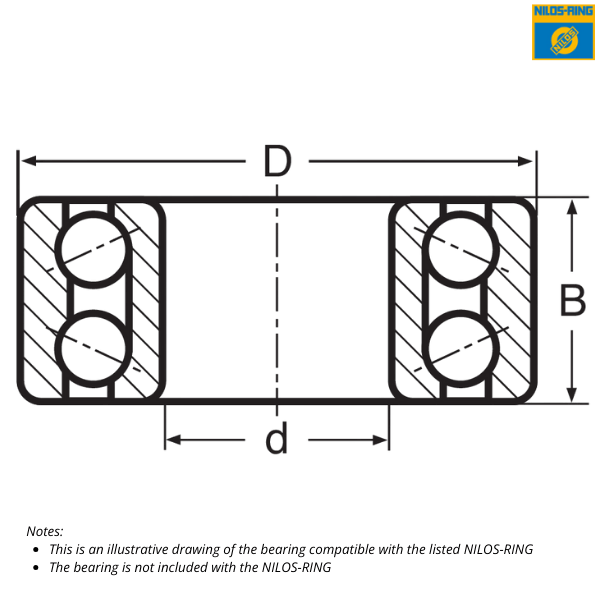

Description of Compatible Bearing (32 Series) :
Bearing Part Number - 3222
Bearing Type - Double Row Angular Contact Ball Bearing
Inner Diameter (d) - 110 mm
Outer Diameter (D) - 200 mm
Width (B) - 69.8 mm
♦♦ Images are for representation purposes only
Item Number - 3222 AV NILOS
Category - NILOS-RING for Double Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 110 mm
Outer Diameter (a) - 192 mm
Dimension (C) - 155 mm
Widtth (h) - 4 mm
Material Thickness (s) - 0.5 mm
Description of Compatible Bearing (32 Series) :
Bearing Part Number - 3222
Bearing Type - Double Row Angular Contact Ball Bearing
Inner Diameter (d) - 110 mm
Outer Diameter (D) - 200 mm
Width (B) - 69.8 mm
♦♦ Images are for representation purposes only
