Description
Brand - SKF
Item Number - 32216 J2/QVE141 SKF
Category - Gearbox, Tapered roller bearings
Bore Diameter (d) mm - 80
Outer Diameter (D) mm - 140
Total Width (T) mm - 35.25
Width of Inner Ring (B) mm - 33
Width of Outer Ring (C) mm - 28
Dynamic Load Rating (C) kN - 187
Static Load Rating (C0) kN - 245
Limiting Speed (r/min) - 4500
Weight (kg) - 2.06
Limiting Value (e) - 0.43
Calculation Factor (Y) - 1.4
Calculation Factor (Y0) - 0.8
Designation Prefixes and Suffixes:
J2 - Pressed Window-Type Steel Cage
Q - Optimized Internal Geometry and Surface Finish
VE - This Suffix Followed by Three or Four Digit Numbers Refer to Special Executions.

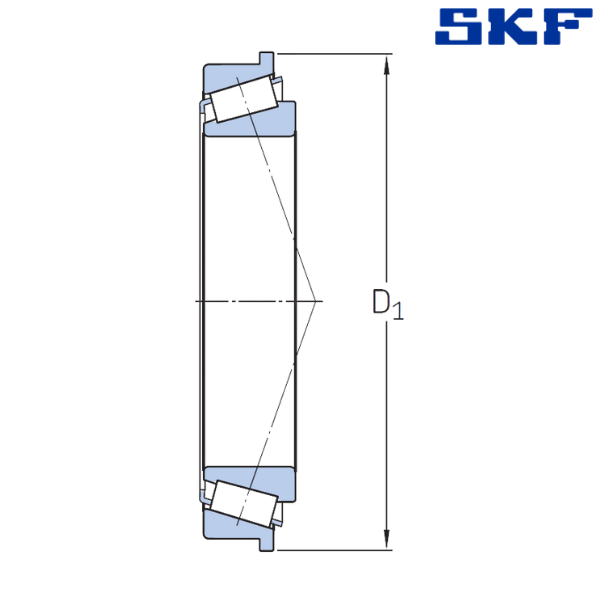

** Images are for representation purposes only
