3221-M FAG

Brand - FAG
Item Number - 3221-M FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 105
Outside Diameter (D) mm - 190
Width (B) mm - 65.1
Basic Dynamic Load Rating, Radial (Cr) N - 215000
Basic Static Load Rating, Radial (C0r) N - 270000
Fatigue Load Limit, Radial (Cur) N - 11400
Limiting Speed (nG) min–1 - 4600
Reference Speed (nϑr) min–1 - 3850
Weight (m) kg - 7.4
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 172.1
Shoulder Diameter Inner Ring (d1) mm - 138
Distance Between the Apexes of the Pressure Cones (a) mm - 134.7
Nominal Contact Angle (α)° - 35

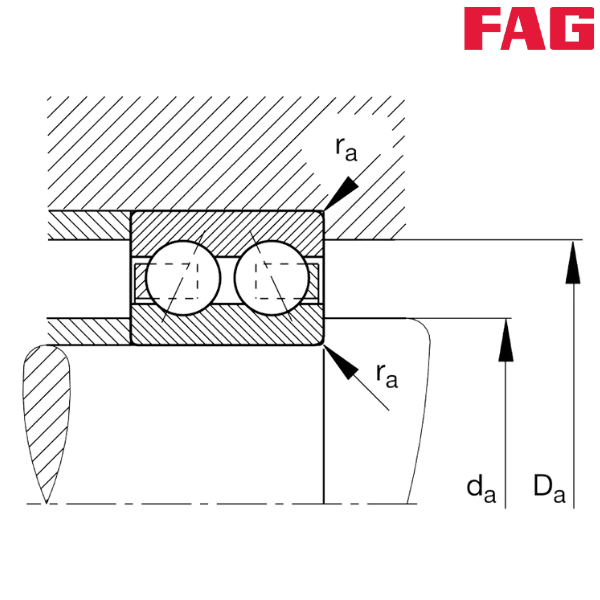

Minimum Diameter Shaft Shoulder (da) mm - 117
Maximum Diameter of Housing Shoulder (Da) mm - 178
Maximum Fillet Radius (ra) mm - 2.1

Descriptions of Suffixes :
--------------------------------------------------------------------------
M - Brass Cage

** Images are for representation purposes only
