Description
Brand - Link-Belt
Item Number - 3220PT1C Link-Belt

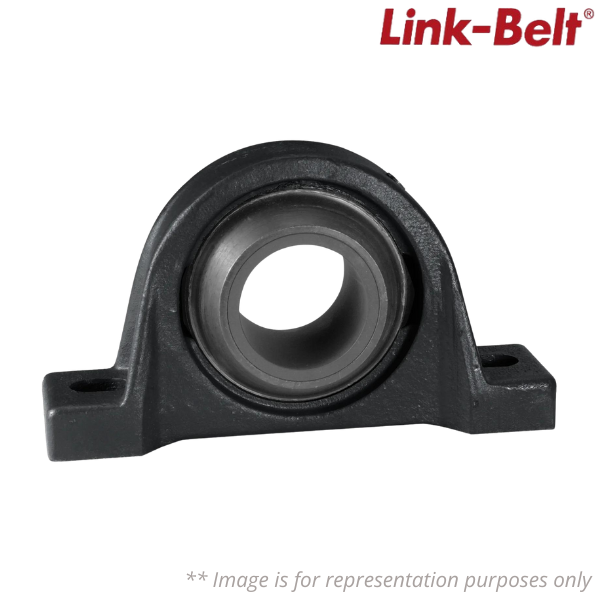

Category - Pillow Blocks Sleeve Bearing
UPC - 662327437947
Material - 10441979
Model - 3200P
Bore Size (in) - 1 1/4 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt
Sleeve Material - Porous Sintered Bronze Oil Impregnated
Auxiliary Seals - 1 CLOSED CAP STEEL
Available End Cap - Y2236
Base to Centerline Height (in) - 1 7/8 in
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - SINTERED BRONZE SLEEVE BRG
Bore Length (in) - 1 11/16 in
Distance Between Bolt Holes (in) - 4 15/16 in
