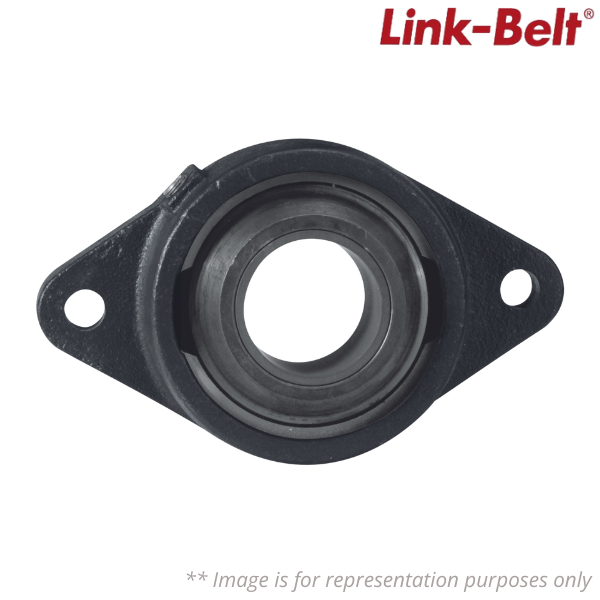

3220FXT3 Link-Belt

Brand - Link-Belt
Item Number - 3220FXT3 Link-Belt
Category - Flange Blocks Sleeve Bearing
UPC - 662327199494
Material - 10410163
Model - 3200FX
Bore Size (in) - 1 1/4 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange Block, Two Bolt
Sleeve Material - Carbon Graphite Self-Lubricating
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - CARBON GRAPHITE SLEEVE BRG
Bore Length (in) - 1 11/16 in
Distance Between Bolt Holes (in) - 5 1/8 in
Distance from Housing Cast Face to Inner Ring Long Hub Face (in) - 1/4 in
Distance from Mounting Surface to Cap Face (in) - 2 23/64 in
Distance from Mounting Surface to Inner Ring Short Hub Face (in) - 1/32 in
Distance from Mounting Surface to Outer Most Bearing Face (in) - 1 21/32 in
Housing Length (in) - 6 1/8 in
Insert - 3220T3
Insert Component Hub Diameter (in) - 2 1/8 in
Lubrication Type - SELF LUBRICATING SLEEVE
Maximum Temperature (C) - 371 C
Maximum Temperature (F) - 700 F
Mounting Bolt Size (in) - 1/2 in
Mounting Housing Width (in) - 5/8 in
Weight (kg) - 1.50138952
Standoff Distance (in) - 5/32 in
