Description
Brand - FAG
Item Number - 3220-B-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 100
Outside Diameter (D) mm - 180
Width (B) mm - 60.3
Basic Dynamic Load Rating, Radial (Cr) N - 185000
Basic Static Load Rating, Radial (C0r) N - 173000
Fatigue Load Limit, Radial (Cur) N - 7600
Limiting Speed (nG) min–1 - 3650
Reference Speed (nϑr) min–1 - 4400
Weight (m) kg - 5.4
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 155.7
Shoulder Diameter Inner Ring (d1) mm - 124.7
Distance Between the Apexes of the Pressure Cones (a) mm - 91.3
Nominal Contact Angle (α)° - 25

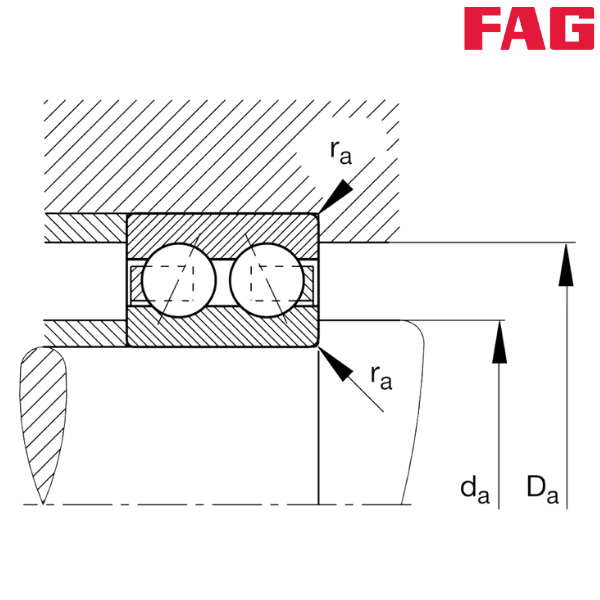

Minimum Diameter Shaft Shoulder (da) mm - 112
Maximum Diameter of Housing Shoulder (Da) mm - 168
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
