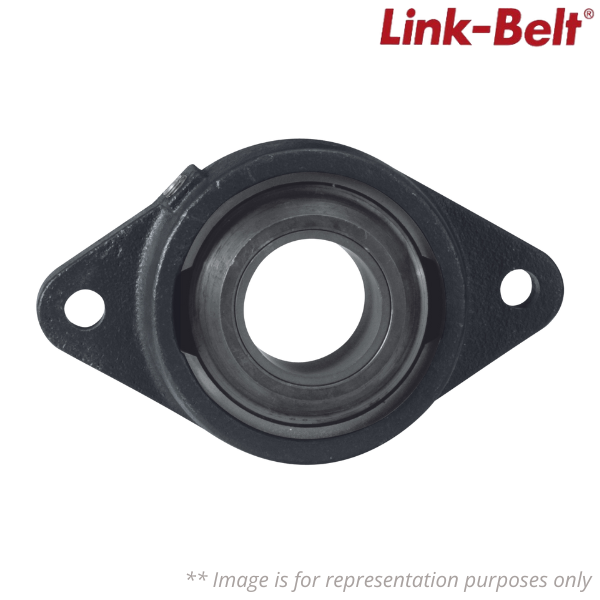

3219FXT3 Link-Belt

Brand - Link-Belt
Item Number - 3219FXT3 Link-Belt
Category - Flange Blocks Sleeve Bearing
UPC - 662327199418
Material - 10419275
Model - 3200FX
Bore Size (in) - 1 3/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange Block, Two Bolt
Sleeve Material - Carbon Graphite Self-Lubricating
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - CARBON GRAPHITE SLEEVE BRG
Bore Length (in) - 1 3/8 in
Distance Between Bolt Holes (in) - 4 19/32 in
Distance from Housing Cast Face to Inner Ring Long Hub Face (in) - 5/32 in
Distance from Mounting Surface to Cap Face (in) - 2 15/64 in
Distance from Mounting Surface to Outer Most Bearing Face (in) - 1 15/32 in
Height - 1.81
Housing Length (in) - 5 19/32 in
Insert - 3219T3
Insert Component Hub Diameter (in) - 1 7/8 in
Length - 5.63
Lubrication Type - SELF LUBRICATING SLEEVE
Maximum Temperature (C) - 371 C
Maximum Temperature (F) - 700 F
Mounting Bolt Size (in) - 7/16 in
Mounting Housing Width (in) - 19/32 in
Weight (kg) - 1.13398
Standoff Distance (in) - 7/32 in
Unit of Dimension - IN
Volume - 0.533
Volume Unit - CDM
Width - 3.19
