Description
Brand - FAG
Item Number - 3219-M FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 95
Outside Diameter (D) mm - 170
Width (B) mm - 55.6
Basic Dynamic Load Rating, Radial (Cr) N - 161000
Basic Static Load Rating, Radial (C0r) N - 193000
Fatigue Load Limit, Radial (Cur) N - 8800
Limiting Speed (nG) min–1 - 5300
Reference Speed (nϑr) min–1 - 4350
Weight (m) kg - 5.06
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 152.8
Shoulder Diameter Inner Ring (d1) mm - 122.2
Distance Between the Apexes of the Pressure Cones (a) mm - 119.8
Nominal Contact Angle (α)° - 35

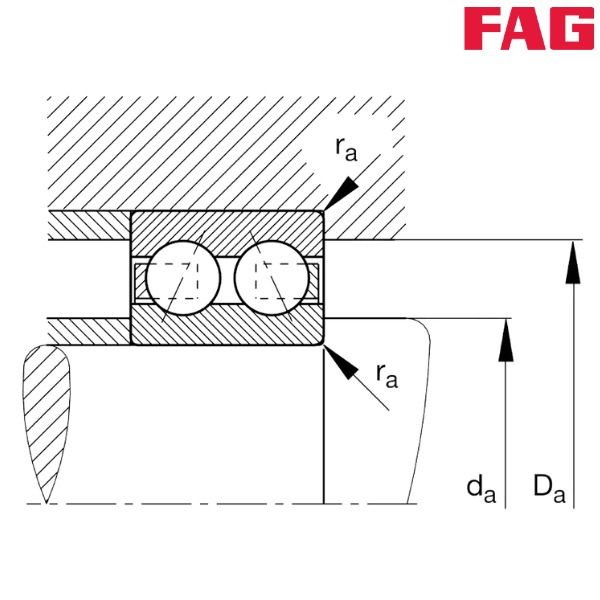

Minimum Diameter Shaft Shoulder (da) mm - 107
Maximum Diameter of Housing Shoulder (Da) mm - 158
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Suffixes :
--------------------------------------------------------------------------
M - Brass Cage
** Images are for representation purposes only
