Description
Brand - FAG
Item Number - 3217-B-2Z-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 85
Outside Diameter (D) mm - 150
Width (B) mm - 49.2
Basic Dynamic Load Rating, Radial (Cr) N - 135000
Basic Static Load Rating, Radial (C0r) N - 127000
Fatigue Load Limit, Radial (Cur) N - 6100
Limiting Speed (nG) min–1 - 3350
Reference Speed (nϑr) min–1 - 4900
Weight (m) kg - 3.3
Minimum Chamfer Dimension (r min) mm - 2
Caliber Diameter Outer Ring (D2) mm - 135.1
Caliber Diamter Inner Ring (d2) mm - 102.3
Distance Between the Apexes of the Pressure Cones (a) mm - 75.9
Nominal Contact Angle (α)° - 25

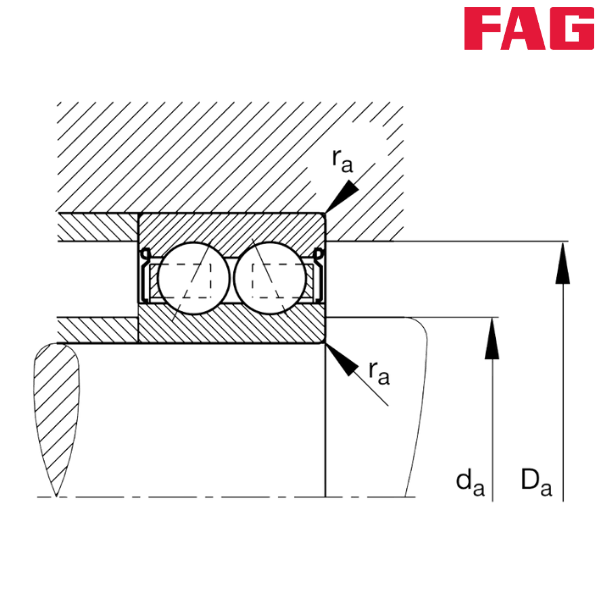

Minimum Diameter Shaft Shoulder (da) mm - 96
Maximum Diameter of Housing Shoulder (Da) mm - 139
Maximum Fillet Radius (ra) mm - 2
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
