Description

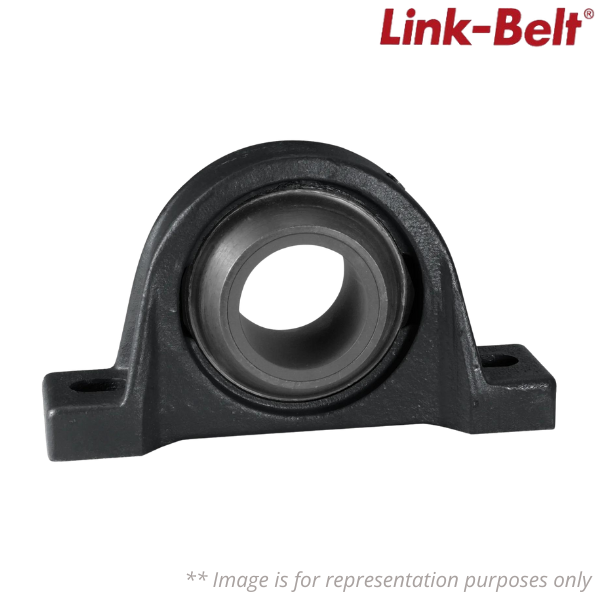

Brand - Link-Belt
Item Number - 3216PT3 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327199340
Material - 10423793
Model - 3200P
Bore Size (in) - 1 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt
Sleeve Material - Carbon Graphite Self-Lubricating
Base to Centerline Height (in) - 1 7/16 in
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - CARBON GRAPHITE SLEEVE BRG
Bore Length (in) - 1 1/8 in
Distance Between Bolt Holes (in) - 4 in
Distance from Bearing Centerline to Cap Face (in) - 1 9/32 in
Distance from Bearing Centerline to Inner Ring Short Hub Face (in) - 9/16 in
