3216-B-TVH FAG

Brand - FAG
Item Number - 3216-B-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 80
Outside Diameter (D) mm - 140
Width (B) mm - 44.4
Basic Dynamic Load Rating, Radial (Cr) N - 99000
Basic Static Load Rating, Radial (C0r) N - 102000
Fatigue Load Limit, Radial (Cur) N - 5100
Limiting Speed (nG) min–1 - 3650
Reference Speed (nϑr) min–1 - 5100
Weight (m) kg - 2.4
Minimum Chamfer Dimension (r min) mm - 2
Shoulder Diameter Outer Ring (D1) mm - 120.3
Shoulder Diameter Inner Ring (d1) mm - 98.8
Distance Between the Apexes of the Pressure Cones (a) mm - 69.1
Nominal Contact Angle (α)° - 25

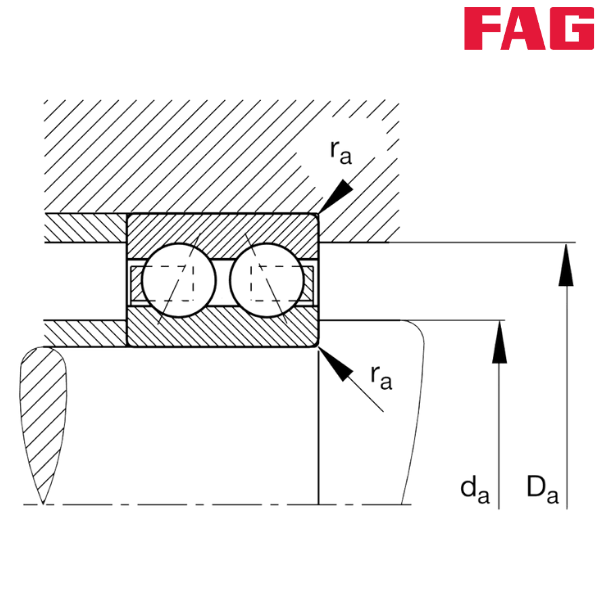

Minimum Diameter Shaft Shoulder (da) mm - 91
Maximum Diameter of Housing Shoulder (Da) mm - 129
Maximum Fillet Radius (ra) mm - 2

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66

** Images are for representation purposes only
