3215-B-2RSR-TVH FAG

Brand - FAG
Item Number - 3215-B-2RSR-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 75
Outside Diameter (D) mm - 130
Width (B) mm - 41.3
Basic Dynamic Load Rating, Radial (Cr) N - 88000
Basic Static Load Rating, Radial (C0r) N - 85000
Fatigue Load Limit, Radial (Cur) N - 4350
Limiting Speed (nG) min–1 - 2900
Reference Speed (nϑr) min–1 -
Weight (m) kg - 1.94
Minimum Chamfer Dimension (r min) mm - 1.5
Caliber Diameter Outer Ring (D2) mm - 115.5
Shoulder Diameter Inner Ring (d1) mm - 92.1
Distance Between the Apexes of the Pressure Cones (a) mm - 65.2
Nominal Contact Angle (α)° - 25

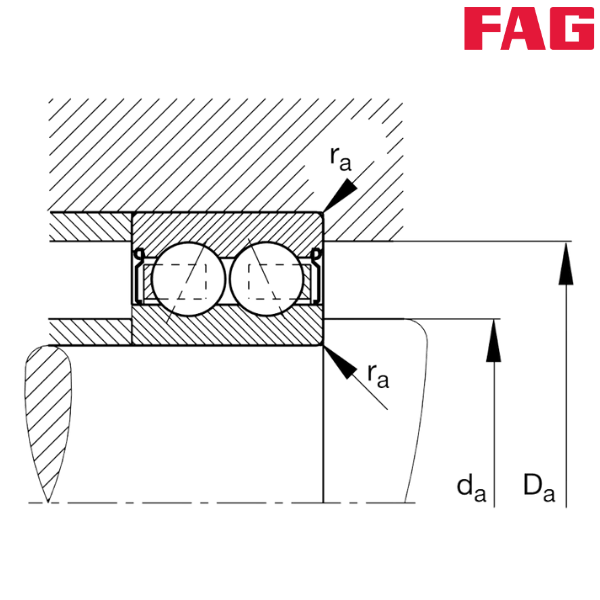

Minimum Diameter Shaft Shoulder (da) mm - 84
Maximum Diameter of Housing Shoulder (Da) mm - 121
Maximum Fillet Radius (ra) mm - 1.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
2RSR - Contact Seal on Both Sides

** Images are for representation purposes only
