3214-B-TVH FAG

Brand - FAG
Item Number - 3214-B-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 70
Outside Diameter (D) mm - 125
Width (B) mm - 39.7
Basic Dynamic Load Rating, Radial (Cr) N - 82000
Basic Static Load Rating, Radial (C0r) N - 79000
Fatigue Load Limit, Radial (Cur) N - 4100
Limiting Speed (nG) min–1 - 4150
Reference Speed (nϑr) min–1 - 5600
Weight (m) kg - 1.78
Minimum Chamfer Dimension (r min) mm - 1.5
Shoulder Diameter Outer Ring (D1) mm - 106.3
Shoulder Diameter Inner Ring (d1) mm - 87
Distance Between the Apexes of the Pressure Cones (a) mm - 61.6
Nominal Contact Angle (α)° - 25

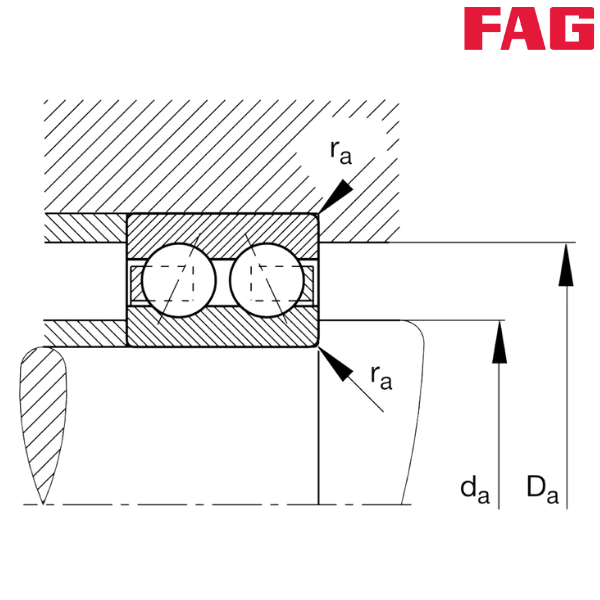

Minimum Diameter Shaft Shoulder (da) mm - 79
Maximum Diameter of Housing Shoulder (Da) mm - 116
Maximum Fillet Radius (ra) mm - 1.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
