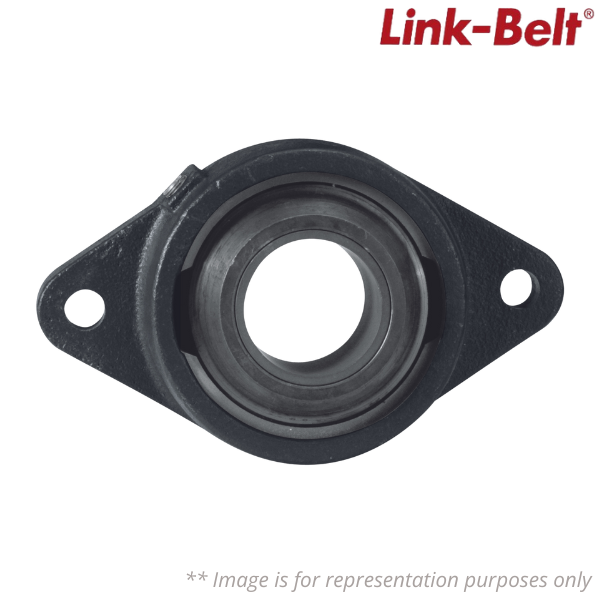

3212FXT3 Link-Belt

Brand - Link-Belt
Item Number - 3212FXT3 Link-Belt
Category - Flange Blocks Sleeve Bearing
UPC - 662327199234
Material - 10423791
Model - 3200FX
Bore Size (in) - 3/4 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange Block, Two Bolt
Sleeve Material - Carbon Graphite Self-Lubricating
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - CARBON GRAPHITE SLEEVE BRG
Bore Length (in) - 1 1/4 in
Distance Between Bolt Holes (in) - 3 17/32 in
Distance from Housing Cast Face to Inner Ring Long Hub Face (in) - 5/32 in
Distance from Mounting Surface to Cap Face (in) - 2 1/64 in
Distance from Mounting Surface to Outer Most Bearing Face (in) - 1 23/64 in
Height - 1.5
Housing Length (in) - 4 13/32 in
Insert - 3212T3
Insert Component Hub Diameter (in) - 1 3/16 in
Length - 4.44
Lubrication Type - SELF LUBRICATING SLEEVE
Maximum Temperature (C) - 371 C
Maximum Temperature (F) - 700 F
Mounting Bolt Size (in) - 3/8 in
Mounting Housing Width (in) - 9/16 in
Weight (kg) - 0.53523856
Standoff Distance (in) - 1/4 in
Unit of Dimension - IN
Volume - 0.334
Volume Unit - CDM
Width - 3.06
