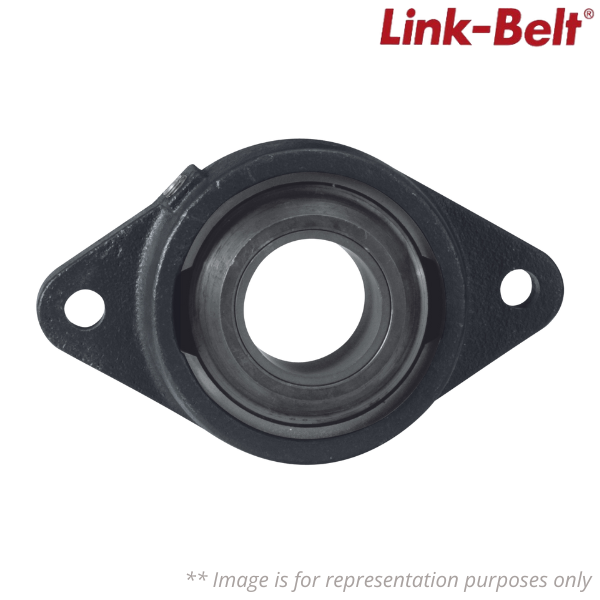

3210FXT3 Link-Belt

Brand - Link-Belt
Item Number - 3210FXT3 Link-Belt
Category - Flange Blocks Sleeve Bearing
UPC - 662327199135
Material - 10416190
Model - 3200FX
Bore Size (in) - 5/8 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange Block, Two Bolt
Sleeve Material - Carbon Graphite Self-Lubricating
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - CARBON GRAPHITE SLEEVE BRG
Bore Length (in) - 15/16 in
Distance Between Bolt Holes (in) - 3 in
Distance from Housing Cast Face to Inner Ring Long Hub Face (in) - 7/64 in
Distance from Mounting Surface to Cap Face (in) - 1 25/32 in
Distance from Mounting Surface to Outer Most Bearing Face (in) - 1 7/64 in
Height - 1.5
Housing Length (in) - 3 7/8 in
Insert - 3210T3
Insert Component Hub Diameter (in) - 1 1/8 in
Length - 4.44
Lubrication Type - SELF LUBRICATING SLEEVE
Maximum Temperature (C) - 371 C
Maximum Temperature (F) - 700 F
Mounting Bolt Size (in) - 3/8 in
Mounting Housing Width (in) - 1/2 in
Weight (kg) - 0.36740952
Standoff Distance (in) - 17/64 in
Unit of Dimension - IN
Volume - 0.334
Volume Unit - CDM
Width - 3.06
