3210-BD-XL-TVH FAG

Brand - FAG
Item Number - 3210-BD-XL-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 50
Outside Diameter (D) mm - 90
Width (B) mm - 30.2
Basic Dynamic Load Rating, Radial (Cr) N - 53000
Basic Static Load Rating, Radial (C0r) N - 44000
Fatigue Load Limit, Radial (Cur) N - 3050
Limiting Speed (nG) min–1 - 7800
Reference Speed (nϑr) min–1 - 7600
Weight (m) kg - 0.672
Minimum Chamfer Dimension (r min) mm - 1.1
Shoulder Diameter Outer Ring (D1) mm - 80.1
Shoulder Diameter Inner Ring (d1) mm - 64.9
Distance Between the Apexes of the Pressure Cones (a) mm - 53.2
Nominal Contact Angle (α)° - 30

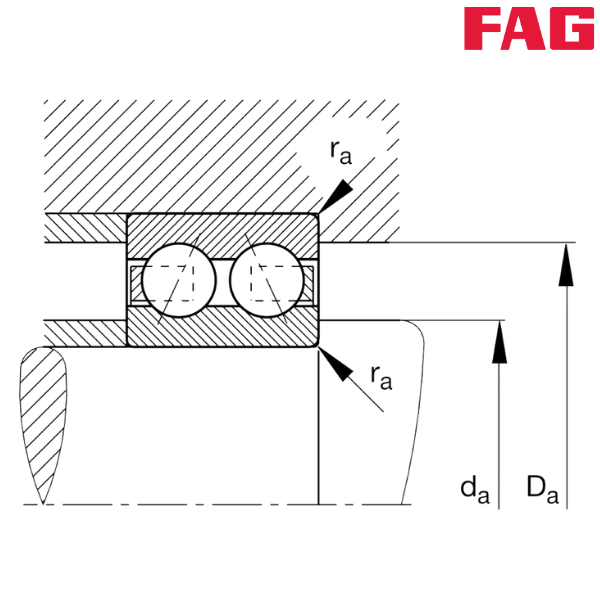

Minimum Diameter Shaft Shoulder (da) mm - 57
Maximum Diameter of Housing Shoulder (Da) mm - 83
Maximum Fillet Radius (ra) mm - 1

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
