3208-BD-XL-2HRS-TVH FAG

Brand - FAG
Item Number - 3208-BD-XL-2HRS-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 40
Outside Diameter (D) mm - 80
Width (B) mm - 30.2
Basic Dynamic Load Rating, Radial (Cr) N - 51000
Basic Static Load Rating, Radial (C0r) N - 38000
Fatigue Load Limit, Radial (Cur) N - 2650
Limiting Speed (nG) min–1 - 6700
Weight (m) kg - 0.597
Minimum Chamfer Dimension (r min) mm - 1.1
Caliber Diameter Outer Ring (D2) mm - 72.6
Caliber Diamter Inner Ring (d2) mm - 52.8
Distance Between the Apexes of the Pressure Cones (a) mm - 47.4
Nominal Contact Angle (α)° - 30

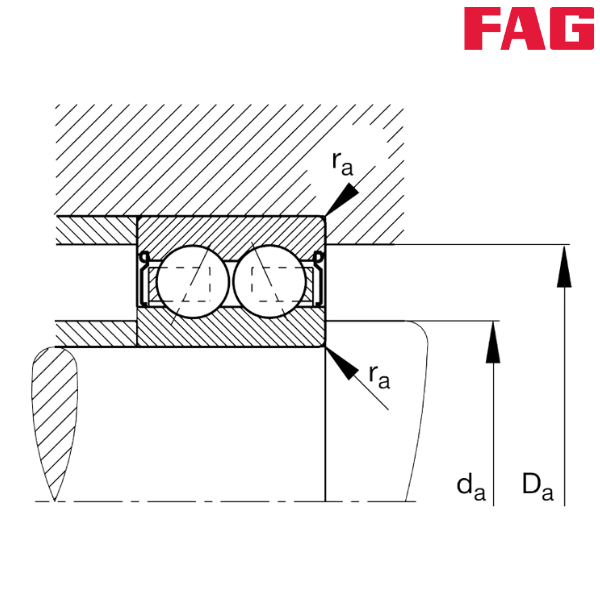

Minimum Diameter Shaft Shoulder (da) mm - 47
Maximum Diameter of Housing Shoulder (Da) mm - 73
Maximum Fillet Radius (ra) mm - 1

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
2HRS - Contact Seal on Both Side

** Images are for representation purposes only
