Description
Brand - FAG
Item Number - 3207-BD-XL-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 35
Outside Diameter (D) mm - 72
Width (B) mm - 27
Basic Dynamic Load Rating, Radial (Cr) N - 41000
Basic Static Load Rating, Radial (C0r) N - 30000
Fatigue Load Limit, Radial (Cur) N - 2090
Limiting Speed (nG) min–1 - 10100
Reference Speed (nϑr) min–1 - 9900
Weight (m) kg - 0.436
Minimum Chamfer Dimension (r min) mm - 1.1
Shoulder Diameter Outer Ring (D1) mm - 62.4
Shoulder Diameter Inner Ring (d1) mm - 49.1
Distance Between the Apexes of the Pressure Cones (a) mm - 42.5
Nominal Contact Angle (α)° - 30

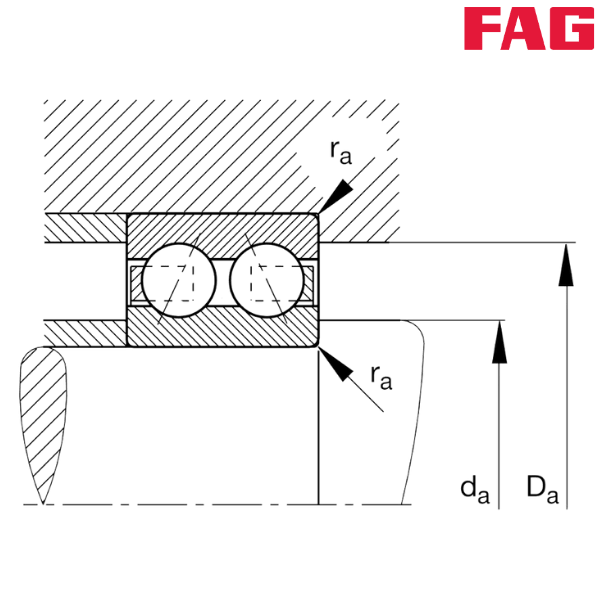

Minimum Diameter Shaft Shoulder (da) mm - 42
Maximum Diameter of Housing Shoulder (Da) mm - 65
Maximum Fillet Radius (ra) mm - 1
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
** Images are for representation purposes only
