3205-BD-XL-2Z-TVH FAG

Brand - FAG
Item Number - 3205-BD-XL-2Z-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 25
Outside Diameter (D) mm - 52
Width (B) mm - 20.6
Basic Dynamic Load Rating, Radial (Cr) N - 22000
Basic Static Load Rating, Radial (C0r) N - 15200
Fatigue Load Limit, Radial (Cur) N - 1050
Limiting Speed (nG) min–1 - 10700
Weight (m) kg - 0.175
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 47.6
Caliber Diamter Inner Ring (d2) mm - 34.2
Distance Between the Apexes of the Pressure Cones (a) mm - 30.8
Nominal Contact Angle (α)° - 30

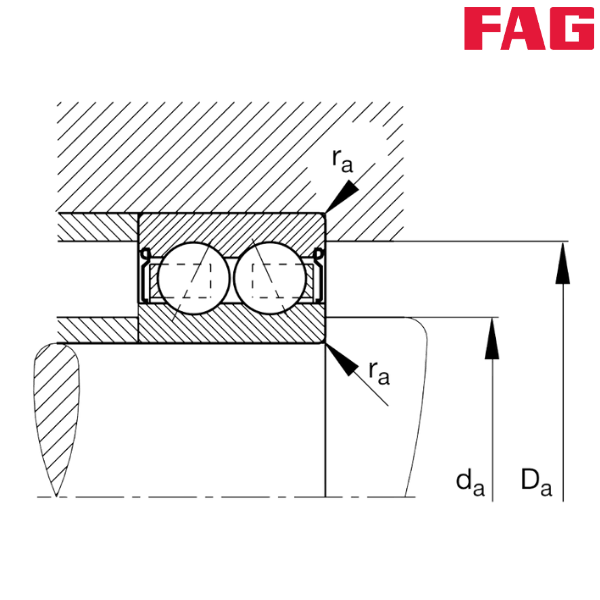

Minimum Diameter Shaft Shoulder (da) mm - 30.6
Maximum Diameter of Housing Shoulder (Da) mm - 46.4
Maximum Fillet Radius (ra) mm - 1

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
