Description
Brand - FAG

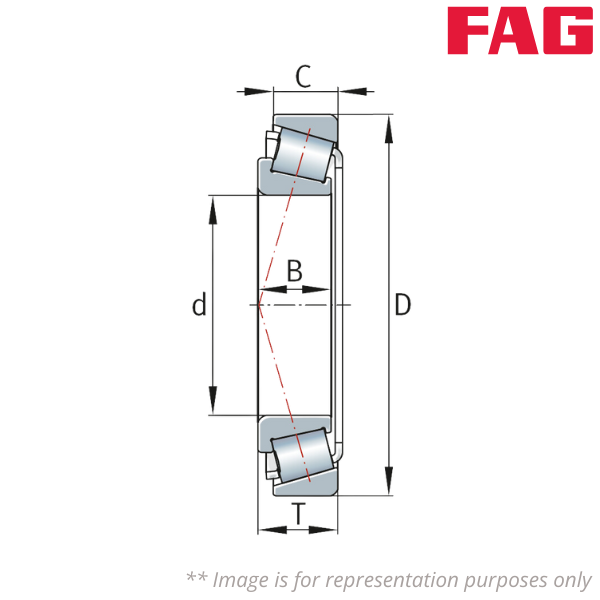

Item Number - 32028-X-XL-S1 FAG
Category - Tapered Roller Bearing Single Row (Standard)
Weight (m) kg - 5.4
Inner Diameter (d) mm - 140
Outer Diameter (D) mm - 210
Inner Ring Width (B) mm - 45
Outer Ring Width (C) mm - 34
Total Width (T) mm - 45
Basic Dynamic Load Rating (C) N - 400000
Basic Static Load Rating (C0) N - 590000
Limiting Speed (n) min–1 - 3450
