3202-BD-XL-2Z-TVH FAG

Brand - FAG
Item Number - 3202-BD-XL-2Z-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 15
Outside Diameter (D) mm - 35
Width (B) mm - 15.9
Basic Dynamic Load Rating, Radial (Cr) N - 12600
Basic Static Load Rating, Radial (C0r) N - 7400
Fatigue Load Limit, Radial (Cur) N - 520
Limiting Speed (nG) min–1 - 16700
Weight (m) kg - 0.065
Minimum Chamfer Dimension (r min) mm - 0.6
Caliber Diameter Outer Ring (D2) mm - 31.1
Caliber Diamter Inner Ring (d2) mm - 21
Distance Between the Apexes of the Pressure Cones (a) mm - 20.7
Nominal Contact Angle (α)° - 30

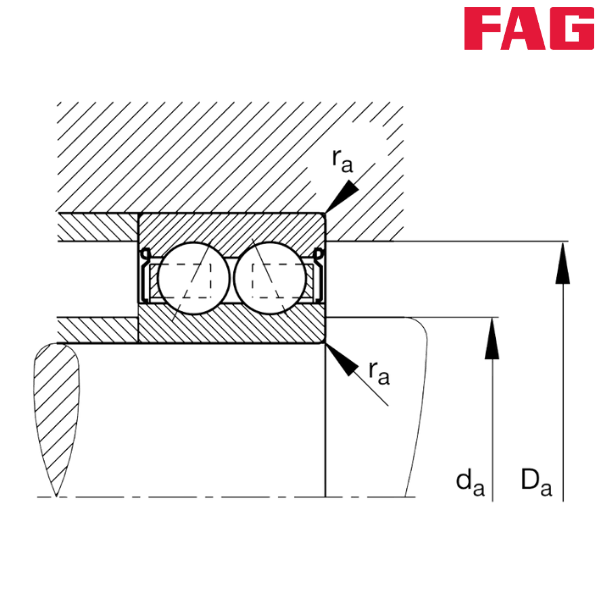

Minimum Diameter Shaft Shoulder (da) mm - 19.2
Maximum Diameter of Housing Shoulder (Da) mm - 30.8
Maximum Fillet Radius (ra) mm - 0.6

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type

** Images are for representation purposes only
