Description
Brand - NILOS-RING

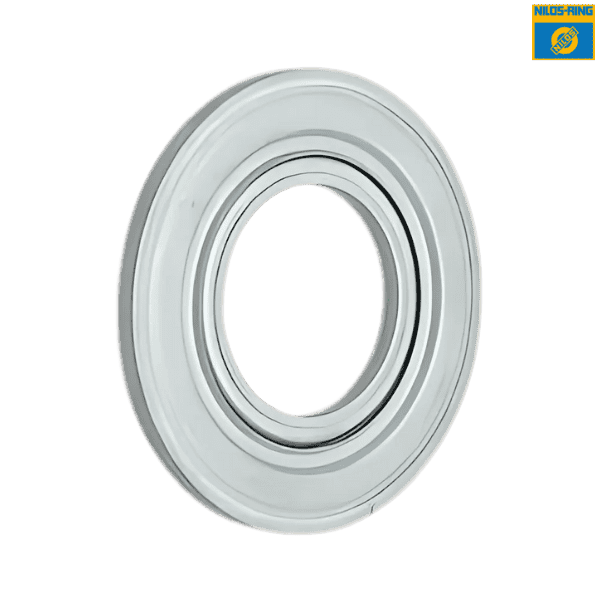

Item Number - 32018 XAK NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

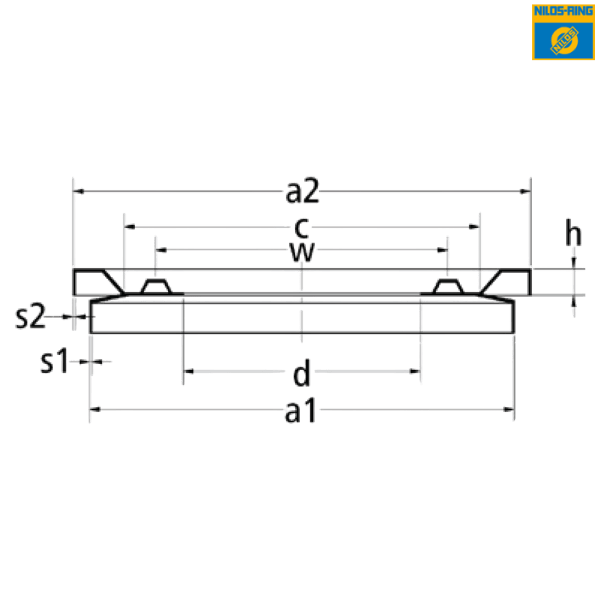

Principal Dimensions & Load Ratings (Metric) :
Dimension (a1) - 137 mm
Outer Diameter (a2) - 143 mm
Dimension (c) - 115 mm
Inner Diameter (d) - 90 mm
Dimension (w*) - 102 mm
Width (h) - 5 mm
Dimension (s1) - 0.5 mm
Dimension (s2) - 0.5 mm

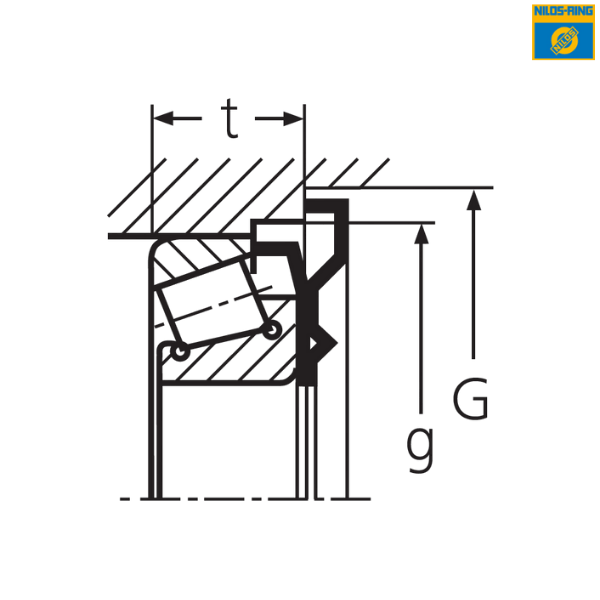

Dimension (G) - 145 mm
Dimension (g) - 140 mm
Dimension (t) - 32.6 mm
Description of Compatible Bearing (320 X Series) :
Bearing Part Number - 32018X
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 90 mm
Outer Diameter (D) - 140 mm
Width (C) - 24 mm
Other salient points to be noted :
* Locking nipples of NILOS-RINGS AK have a diameter of 4 mm at the bottom and a height of 1.5 mm
♦ ♦ Images are for representation purposes only
