Description
Brand - NILOS-RING

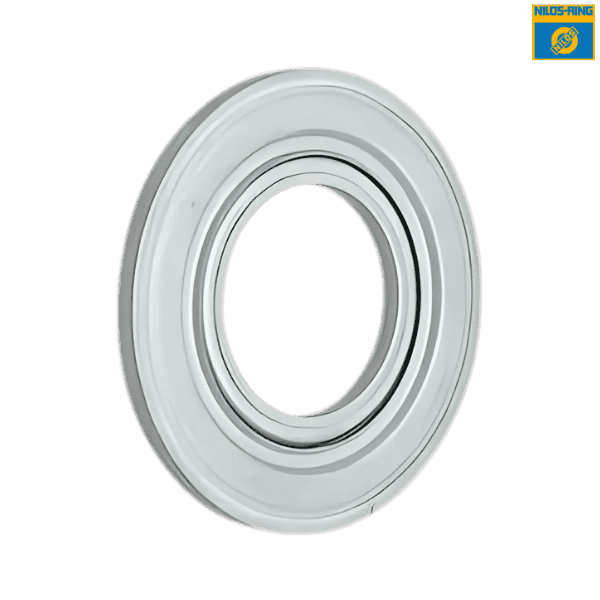

Item Number - 32012 XAK NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

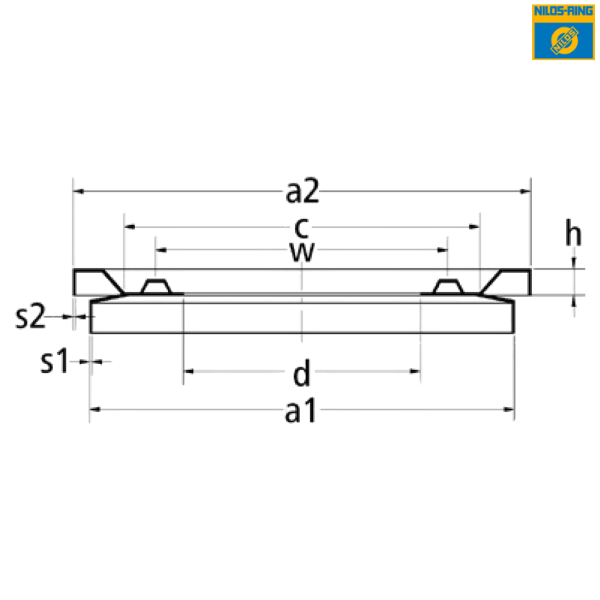

Principal Dimensions & Load Ratings (Metric) :
Dimension (a1) - 93.2 mm
Outer Diameter (a2) - 98 mm
Dimension (c) - 80 mm
Inner Diameter (d) - 60 mm
Dimension (w*) - 70 mm
Width (h) - 4.5 mm
Dimension (s1) - 0.3 mm
Dimension (s2) - 0.5 mm
Dimension (G) - 99 mm
Dimension (g) - 95 mm

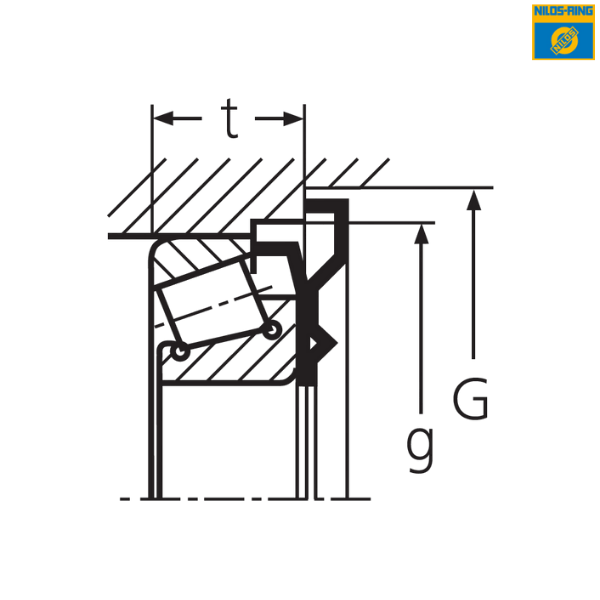

Dimension (t) - 23.4 mm
Description of Compatible Bearing (320 X Series) :
Bearing Part Number - 32012X
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 60 mm
Outer Diameter (D) - 95 mm
Width (C) - 17.5 mm
Other salient points to be noted :
* Locking nipples of NILOS-RINGS AK have a diameter of 4 mm at the bottom and a height of 1.5 mm
♦ ♦ Images are for representation purposes only
