Description
Brand - ZEN
Item Number - 32007 ZEN
Category - Tapered Roller Bearings
Inner Roller Bearing (d) mm - 35
Outer Diameter (D) mm - 62
T (mm) - 18
Width (B) mm - 18
C (mm) - 14
d1 (mm) - 50.1
r1 (mm) - 1
r2 (mm) - 1
r3 (mm) - 1
r4 (mm) - 1
Weight (kg) - 0.225
Dynamic Laod Rating (N) - 51300
Static Load Rating (N) - 54150
Limiting Speed - 12160
Outer Ring Material - AISI52100
Inner Ring Material - AISI52101
Rollers Material - AISI52102
Cage Material - #10 / 08F

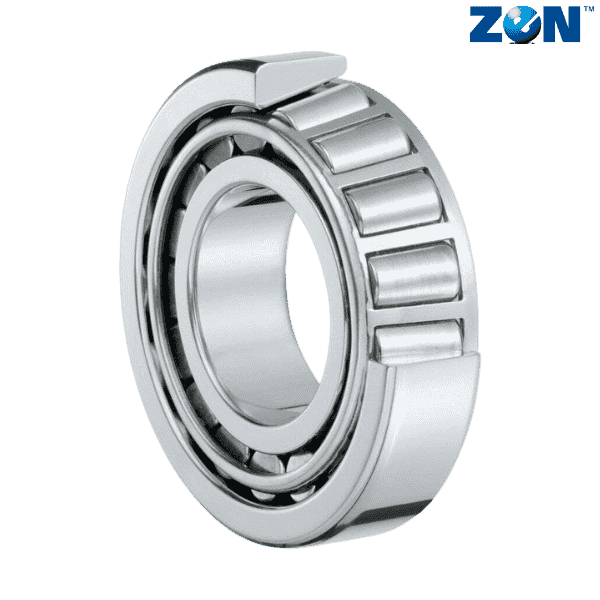

** Images are for representation purposes only
