Description
Brand - FAG
Item Number - 31315-XL-S1 FAG
Category - Tapered Roller Bearing Single Row (Standard)
Weight (m) kg - 3.46

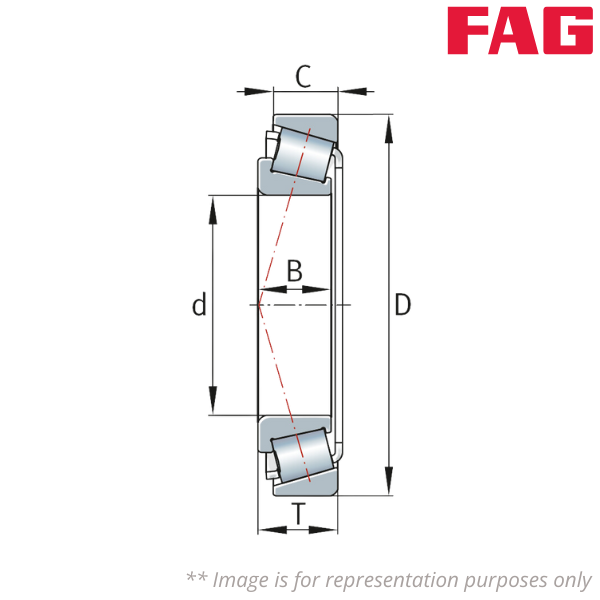

Inner Diameter (d) mm - 75
Outer Diameter (D) mm - 160
Inner Ring Width (B) mm - 37
Outer Ring Width (C) mm - 26
Total Width (T) mm - 40
Basic Dynamic Load Rating (C) N - 240000
Basic Static Load Rating (C0) N - 236000
Limiting Speed (n) min–1 - 4850
