31305 JV NILOS-RING

Brand - NILOS-RING
Item Number - 31305 JV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

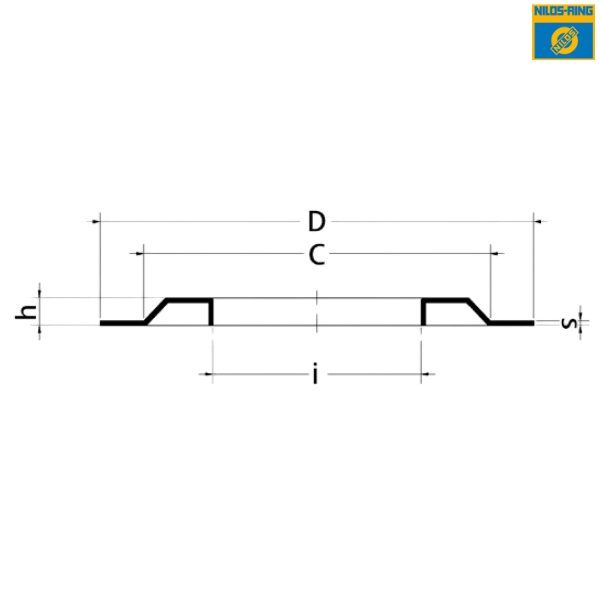

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 30 mm
Dimension (c) - 49 mm
Outer Diameter (D) - 62 mm
Width (h) - 2.5 mm
Thickness (s) - 0.3 mm
Dimension (v) - 1.6 mm

Description of Compatible Bearing (313 Series) :
Bearing Part Number - 31305
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 25 mm
Outer Diameter (D) - 62 mm
Width (C) - 13 mm
