31305 AK NILOS-RING

Brand - NILOS-RING
Item Number - 31305 AK NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

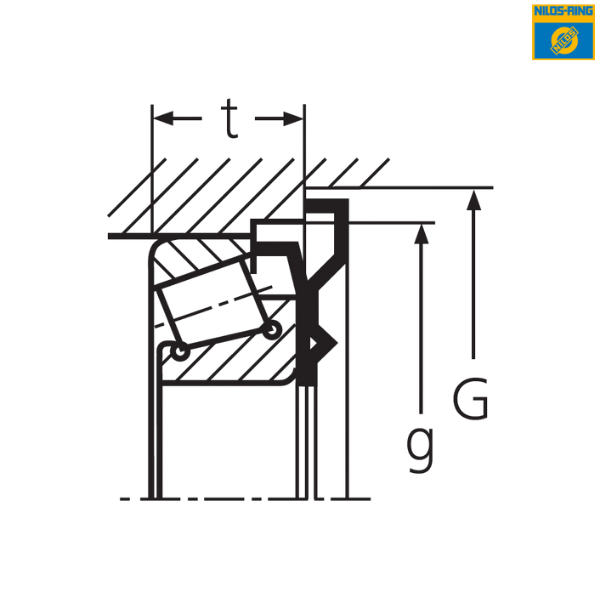

Principal Dimensions & Load Ratings (Metric) :
Dimension (a1) - 60 mm
Outer Diameter (a2) - 65 mm
Dimension (c) - 47 mm
Inner Diameter (d) - 25 mm
Dimension (w*) - 33 mm
Width (h) - 3 mm
Dimension (s1) - 0.3 mm
Dimension (s2) - 0.5 mm
Dimension (G) - 66 mm
Dimension (g) - 63 mm
Dimension (t) - 18.8 mm

Description of Compatible Bearing (313 Series) :
Bearing Part Number - 31305
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 25 mm
Outer Diameter (D) - 62 mm
Width (C) - 13 mm

Other salient points to be noted :
* Locking nipples of NILOS-RINGS AK have a diameter of 4 mm at the bottom and a height of 1.5 mm
