30320 JV NILOS-RING

Brand - NILOS-RING
Item Number - 30320 JV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

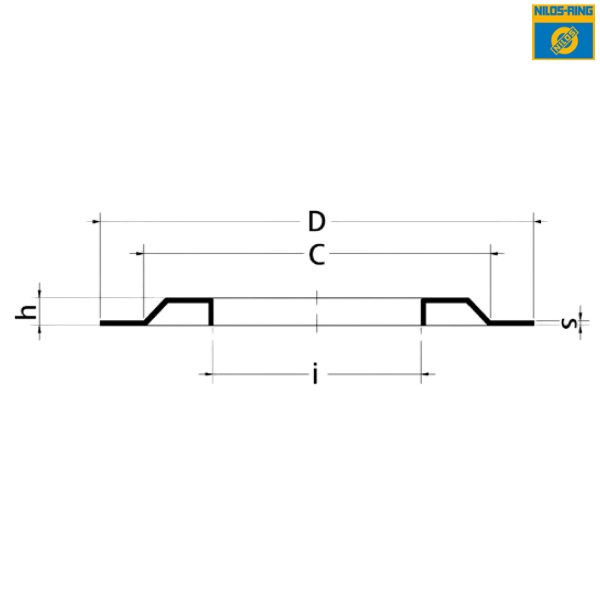

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 116 mm
Dimension (c) - 170 mm
Outer Diameter (D) - 215 mm
Width (h) - 4 mm
Thickness (s) - 0.5 mm
Dimension (v) - 5.1 mm

Description of Compatible Bearing (303 Series) :
Bearing Part Number - 30320
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 100 mm
Outer Diameter (D) - 215 mm
Width (C) - 39 mm

♦ ♦ Images are for representation purposes only
