30308 JV NILOS-RING

Brand - NILOS-RING
Item Number - 30308 JV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

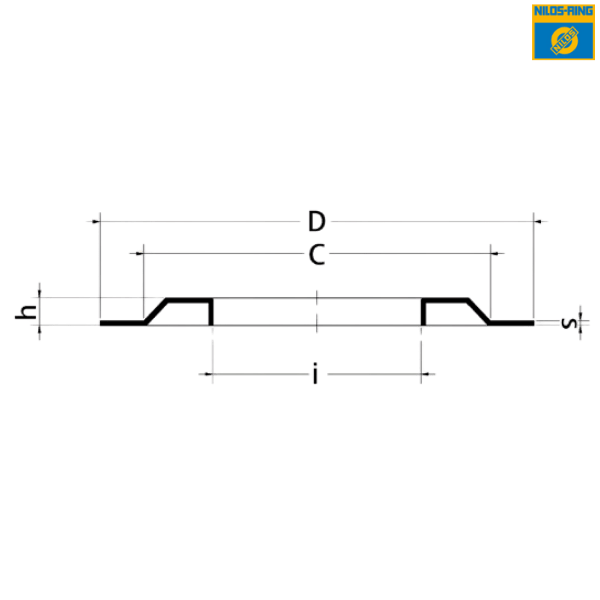

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 47.5 mm
Dimension (c) - 70 mm
Outer Diameter (D) - 90 mm
Width (h) - 3 mm
Thickness (s) - 0.3 mm
Dimension (v) - 2.6 mm

Description of Compatible Bearing (303 Series) :
Bearing Part Number - 30308
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 40 mm
Outer Diameter (D) - 90 mm
Width (C) - 20 mm
