Description
Brand - NILOS-RING
Item Number - 30305 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

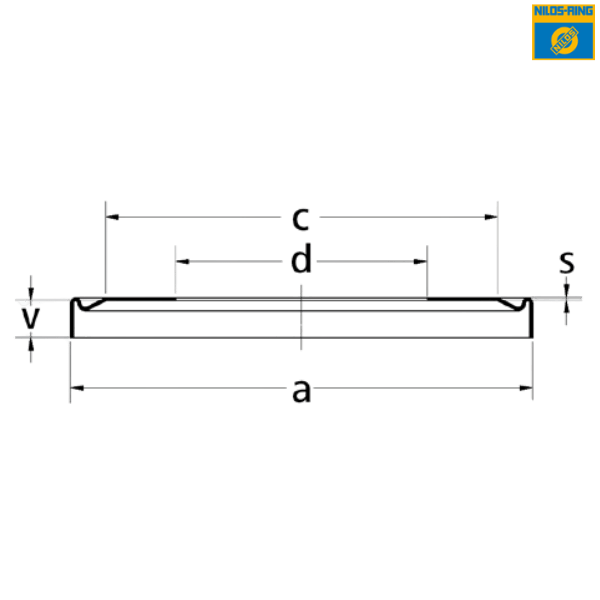

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 60 mm
Dimension (c) - 47 mm
Inner Diameter (d) - 25 mm
Thickness (s) - 0.3 mm
Width (v) - 3.6 mm
Description of Compatible Bearing (303 Series) :
Bearing Part Number - 30305
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 25 mm
Outer Diameter (D) - 62 mm
Width (C) - 15 mm
♦ ♦ Images are for representation purposes only
