Description
Brand - NILOS-RING
Item Number - 30303 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

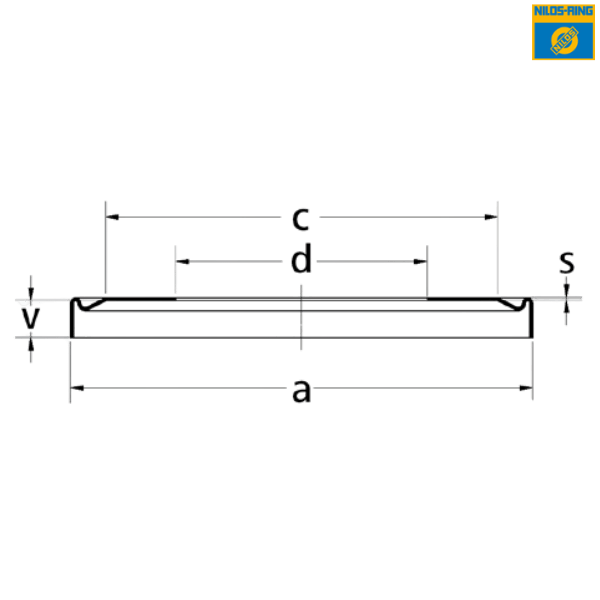

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 45 mm
Dimension (c) - 36 mm
Inner Diameter (d) - 17 mm
Thickness (s) - 0.3 mm
Width (v) - 3.6 mm
Description of Compatible Bearing (303 Series) :
Bearing Part Number - 30303
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 17 mm
Outer Diameter (D) - 47 mm
Width (C) - 12 mm
♦ ♦ Images are for representation purposes only
