Description
Brand - FAG

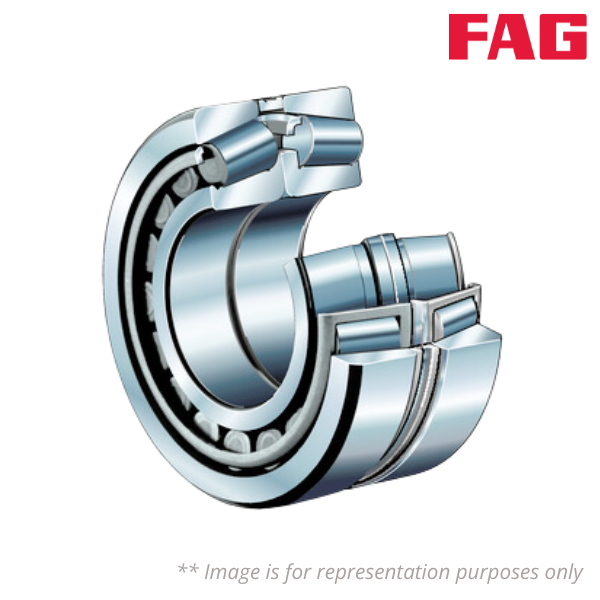

Item Number - 30230-XL-DF-A280-330 FAG
Category - Tapered Roller Bearing Single Row (paired metric)
Also known as - 0899447394080 30230-DF-A280-330
EAN - 4054369644067
Inner (d) MM - 150
Outer (D) MM - 270
Width (B) MM - 98
Inner (d) Inch - 5.9055
Outer (D) Inch - 10.6299
Width (B) Inch - 3.8583
Weight (kg) - 22.9
Tapered Roller Pair Internal Play - 280-330µm
Radial Static Load Rating C0r (N) - 1260000
Radial Dynamic Load Rating Cr (N) - 940000
