Description
Brand - NILOS-RING
Item Number - 30219 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

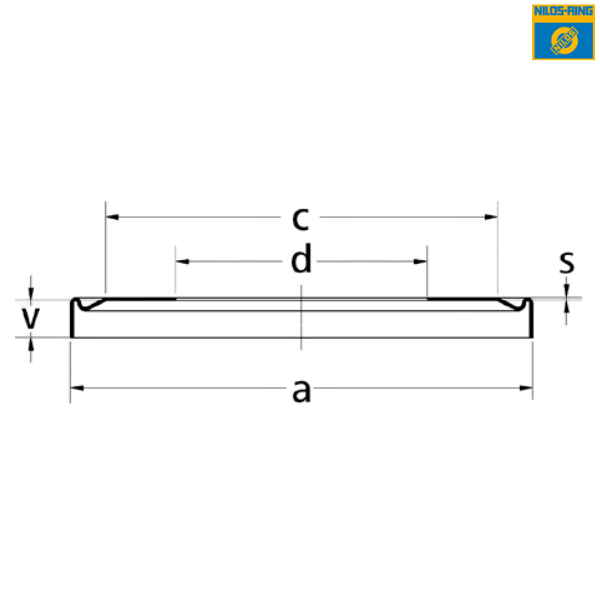

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 165 mm
Dimension (c) - 133 mm
Inner Diameter (d) - 95 mm
Thickness (s) - 0.5 mm
Width (v) - 8.1 mm
Description of Compatible Bearing (302 Series) :
Bearing Part Number - 30219
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 95 mm
Outer Diameter (D) - 170 mm
Width (C) - 27 mm
♦ ♦ Images are for representation purposes only
