Description
Brand - IBC BEARING
Item Number - 2MM9109WI.DUM IBC BEARING
Category - Angular Contact Ball Bearing Single Row
Inner (d) MM - 45
Outer (D) MM - 75
Width (B) MM - 32
Inner (d) Inch - 1.7717
Outer (D) Inch - 2.9528
Width (B) Inch - 1.2598
Weight (kg) - 0.46
Seal - No Seal
Cage Type - P - Plastic Molded Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 15 degrees
Pairing - G - Universal Pairing
Axial Internal Clearance / Preload - DM - 2 Univ Bearings Medium Pre
Lubrication - Standard Lubrication

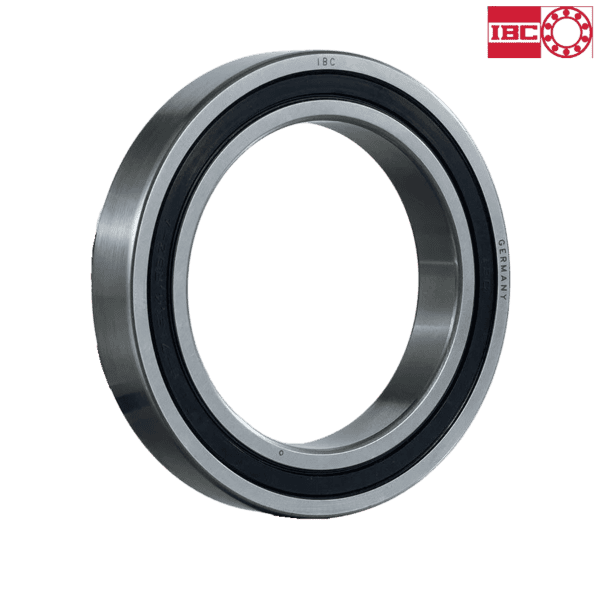

** Image is for representation purposes only
