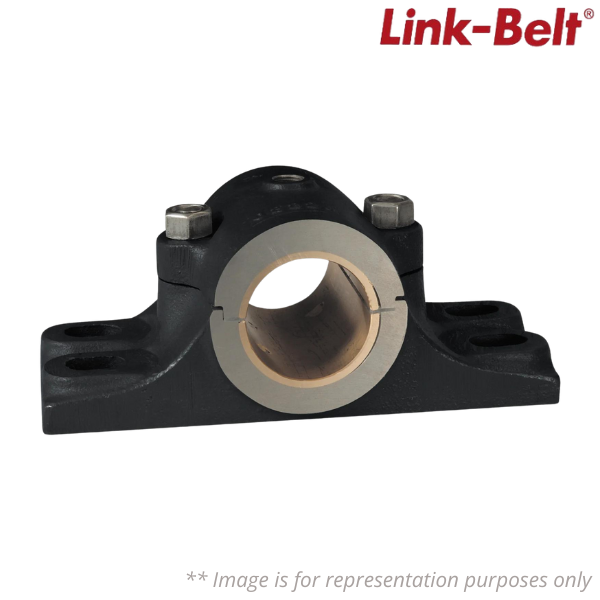

2K1487Z Link-Belt

Brand - Link-Belt
Item Number - 2K1487Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327188023
Material - 10443554
Model - 2K1400Z
Bore Size (in) - 5 7/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Steel
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Gibbed Joint
Sleeve Material - Bronze
Base to Centerline Height (in) - 5 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Spacing Width (in) - 4 1/2 in
Bore Length (in) - 11 in
Bushing - 285BY329
Distance Between Bolt Holes (in) - 15 3/4 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 1/2 NPT
Insert - 285BY329
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Hole Slot Length (in) - 1 3/4 in
Mounting Bolt Size (in) - 1 in
Mounting Pad Height (in) - 2 in
Mounting Pad Length (in) - 19 1/4 in
Mounting Pad Width (in) - 7 3/4 in
Weight (kg) - 72.57472
Pipe Tap Size (in) - 1/2 in
Shims - 131Y36618 QTY 12
