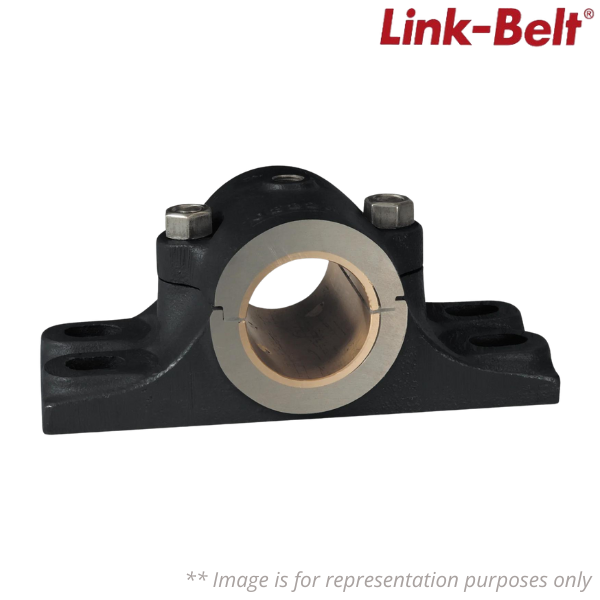

2K1455Z Link-Belt

Brand - Link-Belt
Item Number - 2K1455Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327187989
Material - 10414660
Model - 2K1400Z
Bore Size (in) - 3 7/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Steel
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Gibbed Joint
Sleeve Material - Bronze
Base to Centerline Height (in) - 3 1/4 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Spacing Width (in) - 2 3/4 in
Bore Length (in) - 7 in
Bushing - 285BY317
Distance Between Bolt Holes (in) - 10 1/2 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 1/2 NPT
Height - 7.5
Insert - 285BY317
Length - 13.75
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Hole Slot Length (in) - 1 1/4 in
Mounting Bolt Size (in) - 3/4 in
Mounting Pad Height (in) - 1 3/8 in
Mounting Pad Length (in) - 13 in
Mounting Pad Width (in) - 5 in
Pipe Tap Size (in) - 1/2 in
Required Distance for Cap Removal (in) - 8 9/32 in
