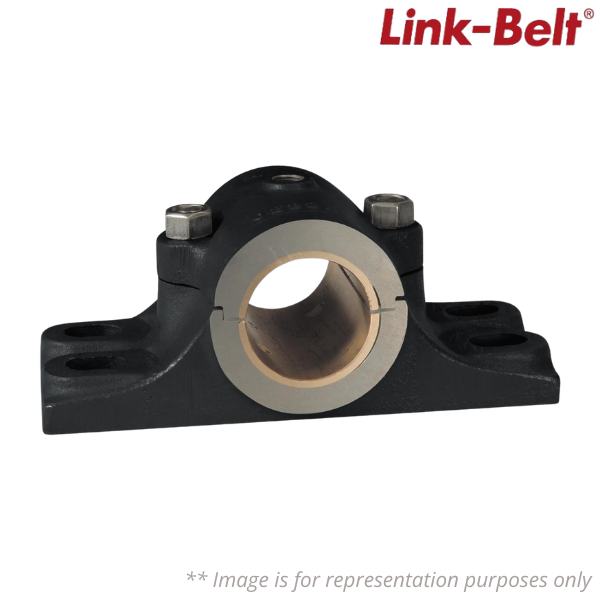

2K1439Z Link-Belt

Brand - Link-Belt
Item Number - 2K1439Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327187941
Material - 10429638
Model - 2K1400Z
Bore Size (in) - 2 7/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Steel
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Gibbed Joint
Sleeve Material - Bronze
Base to Centerline Height (in) - 2 1/8 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Spacing Width (in) - 2 in
Bore Length (in) - 5 in
Bushing - 285BY37
Distance Between Bolt Holes (in) - 8 in
Grease Fitting Size - 3/8 NPT
Height - 10.56
Insert - 285BY37
Length - 6.56
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Hole Slot Length (in) - 1 in
Mounting Bolt Size (in) - 5/8 in
Mounting Pad Height (in) - 1 1/8 in
Mounting Pad Length (in) - 10 1/4 in
Mounting Pad Width (in) - 4 in
Weight (kg) - 8.59103248
Required Distance for Cap Removal (in) - 5 3/8 in
Shims - 131Y3665 QTY 4
