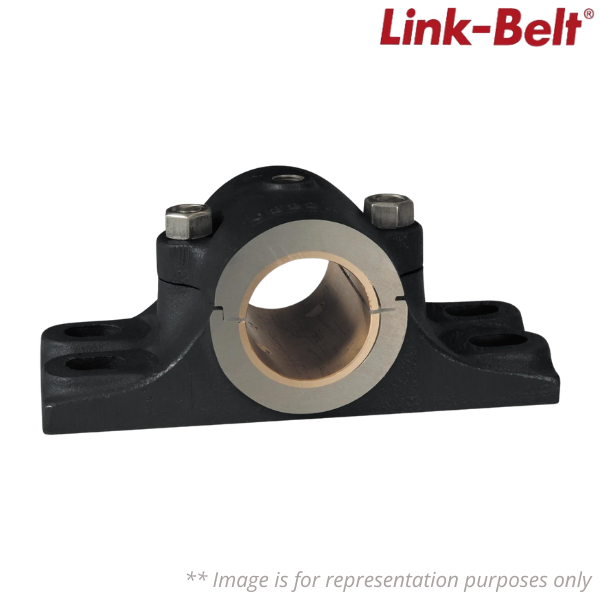

Description
Brand - Link-Belt
Item Number - 2K14160Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 782934899393
Material - 10476383
Model - 2K1400Z
Bore Size (in) - 10 in
Housing Coating - POWDER COATED
Housing Material - Cast Steel
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Gibbed Joint
Base to Centerline Height (in) - 9 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Distance Between Bolt Holes (in) - 25 in
Grease Fitting Size - 1/2 NPT
Insert - 285BY340
Lubrication Type - NOT GREASED FROM FACTORY
Weight (kg) - 308.44256
Shims - 131Y36624 QTY 2
