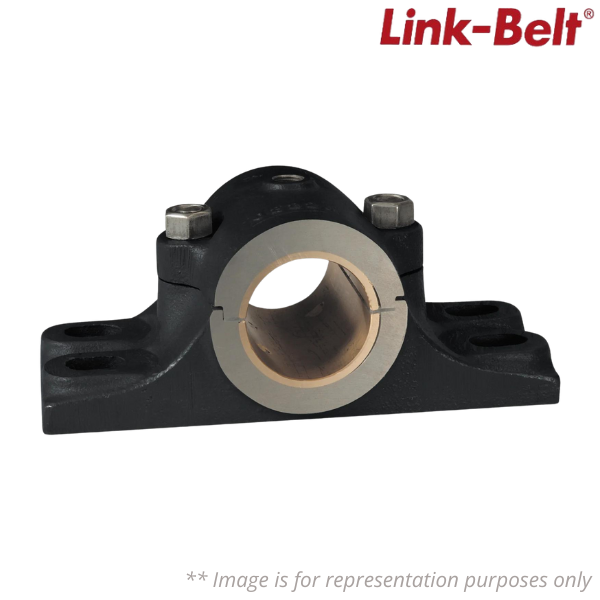

2K14144Z Link-Belt

Brand - Link-Belt
Item Number - 2K14144Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327187903
Material - 10414659
Model - 2K1400Z
Bore Size (in) - 9 in
Housing Coating - POWDER COATED
Housing Material - Cast Steel
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Gibbed Joint
Sleeve Material - Bronze
Base to Centerline Height (in) - 8 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Spacing Width (in) - 6 in
Bore Length (in) - 16 in
Bushing - 285BY338
Distance Between Bolt Holes (in) - 23 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 1/2 NPT
Insert - 285BY338
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Hole Slot Length (in) - 2 3/4 in
Mounting Bolt Size (in) - 1 1/2 in
Mounting Pad Height (in) - 2 3/4 in
Mounting Pad Length (in) - 29 in
Mounting Pad Width (in) - 10 1/2 in
Weight (kg) - 241.310944
Pipe Tap Size (in) - 1/2 in
Shims - 131Y36620 QTY 4
