2984 - 2924-B TIMKEN

Brand - TIMKEN
Item Number - 2984 - 2924-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style
Bore Diameter (d) mm - 46.038
Bore Diameter (d) inch - 1.8125
Outer Diameter (D) mm - 85
Outer Diameter (D) inch - 3.3465
Bearing Width to Flange (T1) mm - 9.525
Bearing Width to Flange (T1) inch - 0.375
Static Radial Rating (C0) kN - 117
Static Radial Rating (C0) lbs - 26200
Dynamic Radial Rating (1 million revolutions) (C1) kN - 86.4
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 19400
Dynamic Radial Rating (90 million revolutions) (C90) kN - 22.4
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 5040
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 13.3
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 2980
Flange Outer Diameter (D1) mm - 89.8
Flange Outer Diameter (D1) inch - 3.53
Flange Width (C2) mm - 4.8
Flange Width (C2) inch - 0.19
Cone Width (B) mm - 25.608
Cone Width (B) inch - 1.0082
Cup Width (C) mm - 20.638
Cup Width (C) inch - 0.8125
Effective Center Location (a) mm - -6.4
Effective Center Location (a) inch - -0.25
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 3.5
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 52
Cone Frontface Backing Diameter (da) inch - 2.05
Cone Backface Backing Diameter (db) mm - 58
Cone Backface Backing Diameter (db) inch - 2.28
Maximum Housing Fillet Radius at Cup Backface (r) mm - 1.3
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.05
Cup Frontface Backing Diameter (Da) mm - 82
Cup Frontface Backing Diameter (Da) inch - 3.23
Cup Backface Backing Diameter (Db) mm - 76
Cup Backface Backing Diameter (Db) inch - 2.99
Stiffness (Kr10^6) N/mm - 1.68
Stiffness (Kr10^6) lbs/in - 9.6
Stiffness (Fr) kN - 2.2
Stiffness (Fr) lbs - 504
Stiffness (Ka10) N/mm - 0.17
Stiffness (Ka10) lbs/in - 0.97
Stiffness (Fa) kN - 1.3
Stiffness (Fa) lbs - 298
Speed Rating (RPM) - 6200
Weight (kg) - 0.65
Weight (lbs) - 1.43

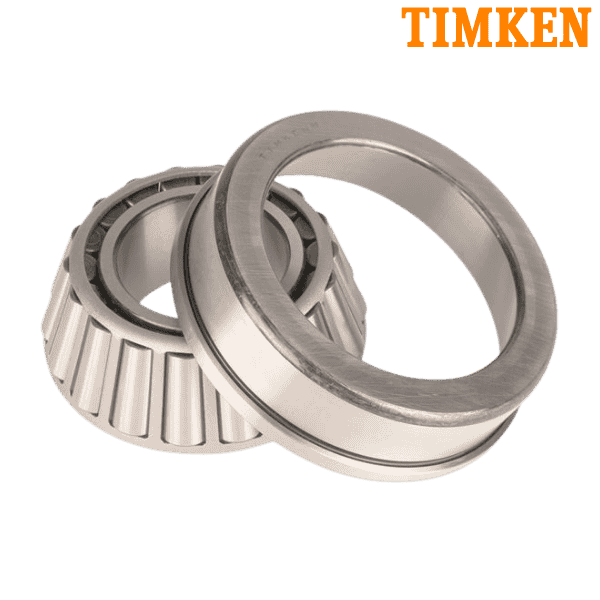

** Images are for representation purposes only
