Description
Brand - CPM
Part Number - 2886 CPM
Category - Geared Slewing Bearing

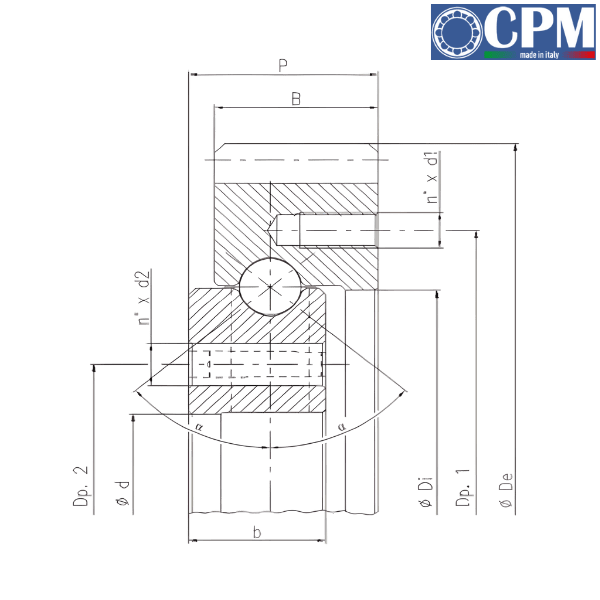

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 245 mm
Outer Diameter (De) - 358.306 mm
Dimension (Di) - 295 mm
Width (B) - 49.5 mm
Dimension (b) - 41.5 mm
Dimension (P) - 26 mm
Dimension (Dp.1) - 324 mm
Dimension (Dp.2) - 232 mm
Dimension (n° × d1) - 10 × M10
Dimension (n° × d2) - 20 × 9
Angle (α) - 50°
Basic Dynamic Load Rating (Ca) - 136 kN
Basic Static Load Rating (Coa) - 760 kN
♦♦ Images are for representation purposes only
Part Number - 2886 CPM
Category - Geared Slewing Bearing
Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 245 mm
Outer Diameter (De) - 358.306 mm
Dimension (Di) - 295 mm
Width (B) - 49.5 mm
Dimension (b) - 41.5 mm
Dimension (P) - 26 mm
Dimension (Dp.1) - 324 mm
Dimension (Dp.2) - 232 mm
Dimension (n° × d1) - 10 × M10
Dimension (n° × d2) - 20 × 9
Angle (α) - 50°
Basic Dynamic Load Rating (Ca) - 136 kN
Basic Static Load Rating (Coa) - 760 kN
♦♦ Images are for representation purposes only
