Description
Brand - CPM
Part Number - 2859 CPM

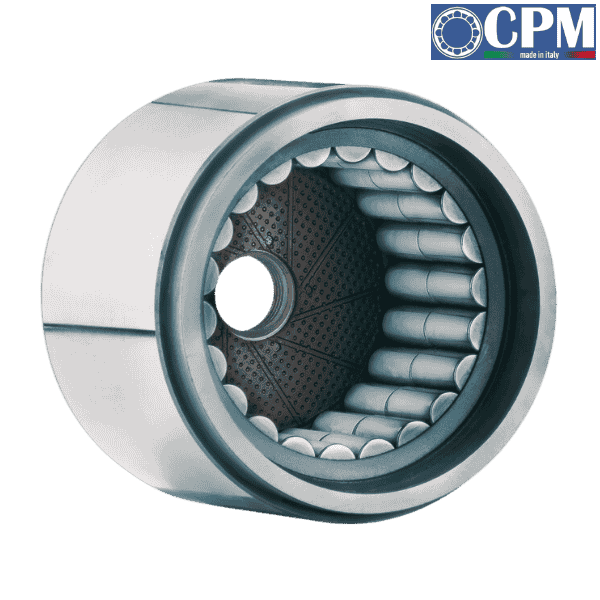

Category - Universal Joint Bearing (Cardan Shafts)
Type - NF
Type NF - Not Flanged

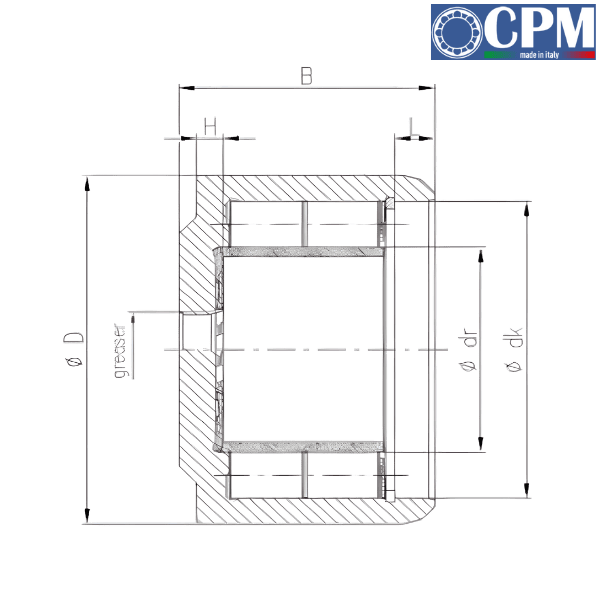

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 72 mm
Inner Diameter (dr) - 48.97 mm
Width (B) - 52 mm
Dimension (H) - 8 mm
Dimension (dk) - 65 mm
Dimension (L) - 7.5 mm
Basic Dynamic Radial Load Rating (Cr) - 122.8 kN
Basic Static Radial Load Rating (Cor) - 204.8 kN
♦♦ Images are for representation purposes only
