Description
Brand - CPM
Part Number - 2809 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - F
Type F - Flanged

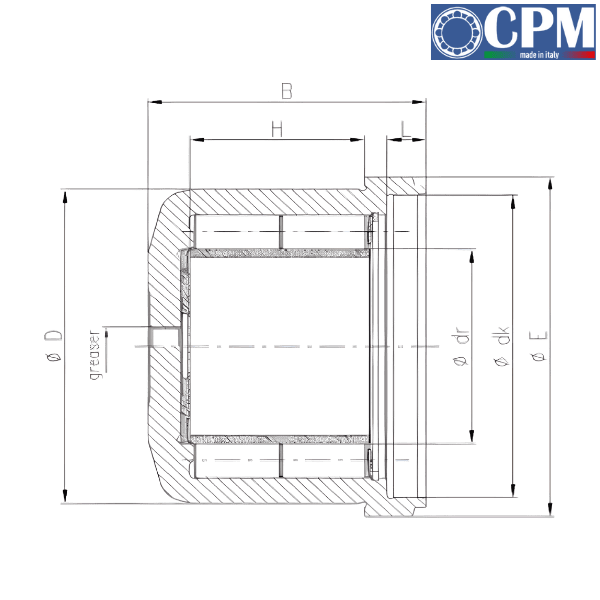

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 120 mm
Inner Diameter (dr) - 78.42 mm
Width (B) - 98 mm
Dimension (H) - 60.85 mm
Dimension (dk) - 115 mm
Dimension (L) - 10.5 mm
Dimension (E) - 129 mm
Greaser - M10x1
Basic Dynamic Radial Load Rating (Cr) - 380 kN
Basic Static Radial Load Rating (Cor) - 665 kN

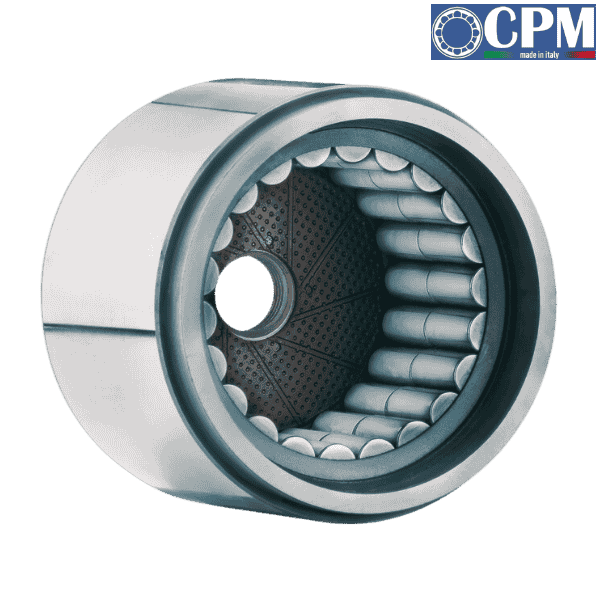

♦♦ Images are for representation purposes only
