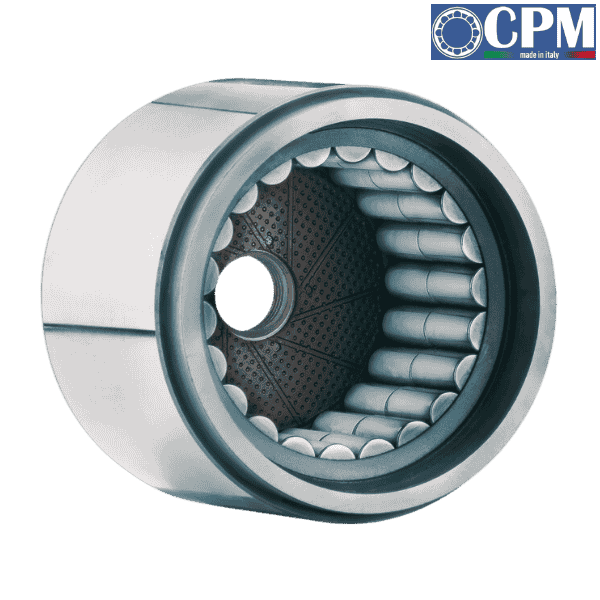

Description
Brand - CPM
Part Number - 2800 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - NF
Type NF - Not Flanged
Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 74 mm
Inner Diameter (dr) - 45.8 mm
Width (B) - 54.5 mm
Dimension (H) - 9 mm
Dimension (dk) - 61.8 mm
Dimension (L) - 9 mm
Greaser - M18x1.5
Basic Dynamic Radial Load Rating (Cr) - 126.4 kN
Basic Static Radial Load Rating (Cor) - 191.3 kN
♦♦ Images are for representation purposes only
