2780 CPM

Brand - CPM
Part Number - 2780 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - F
Type F - Flanged

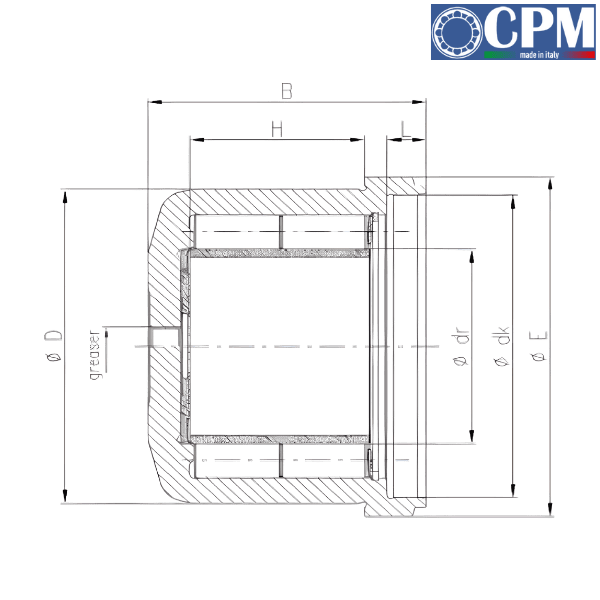

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 130 mm
Inner Diameter (dr) - 81.28 mm
Width (B) - 107 mm
Dimension (H) - 66.85 mm
Dimension (dk) - 115 mm
Dimension (L) - 10.5 mm
Dimension (E) - 145 mm
Greaser - M18x1.5
Basic Dynamic Radial Load Rating (Cr) - 450 kN
Basic Static Radial Load Rating (Cor) - 731 kN

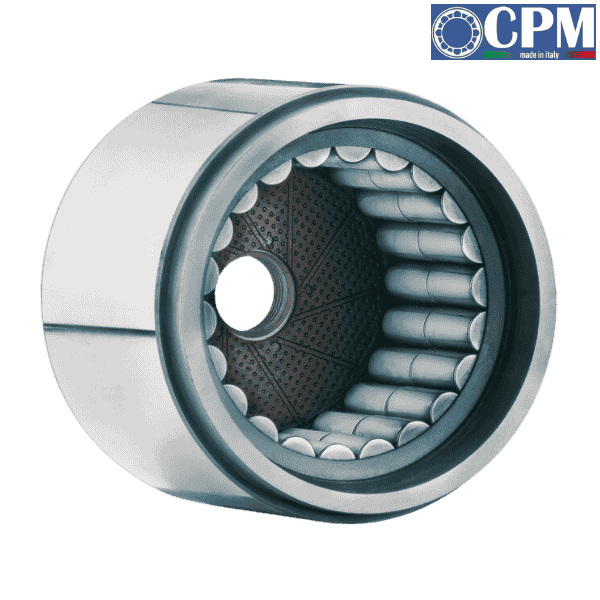

♦♦ Images are for representation purposes only
