Description
Brand - CPM
Part Number - 2773 CPM
Category - Geared Slewing Bearing

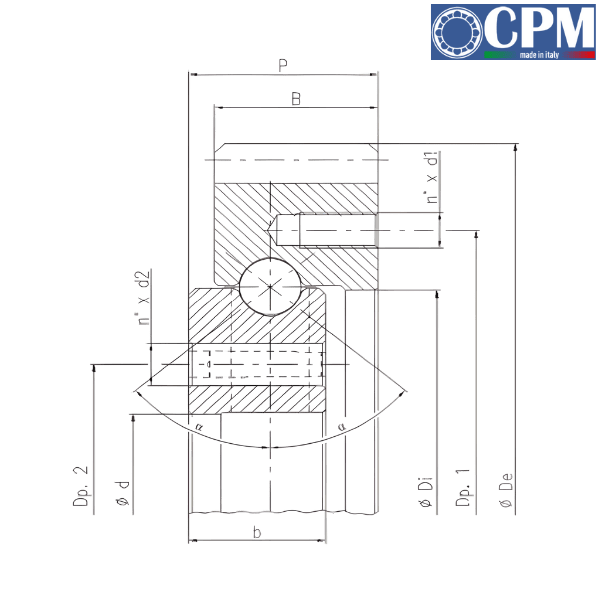

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 124 mm
Outer Diameter (De) - 270 mm
Dimension (Di) - 186.5 mm
Width (B) - 22 mm
Dimension (b) - 22 mm
Dimension (P) - 24 mm
Dimension (Dp.1) - 220 mm
Dimension (Dp.2) - 147 mm
Dimension (n° × d1) - 8 × M10
Dimension (n° × d2) - 8 × 8.5
Angle (α) - 35°
Basic Dynamic Load Rating (Cr) - 90.6 kN
Basic Static Load Rating (Cor) - 165 kN
♦♦ Images are for representation purposes only
